Tektronix 泰克 370A Programmable Curve Tracers 晶體曲線分析儀

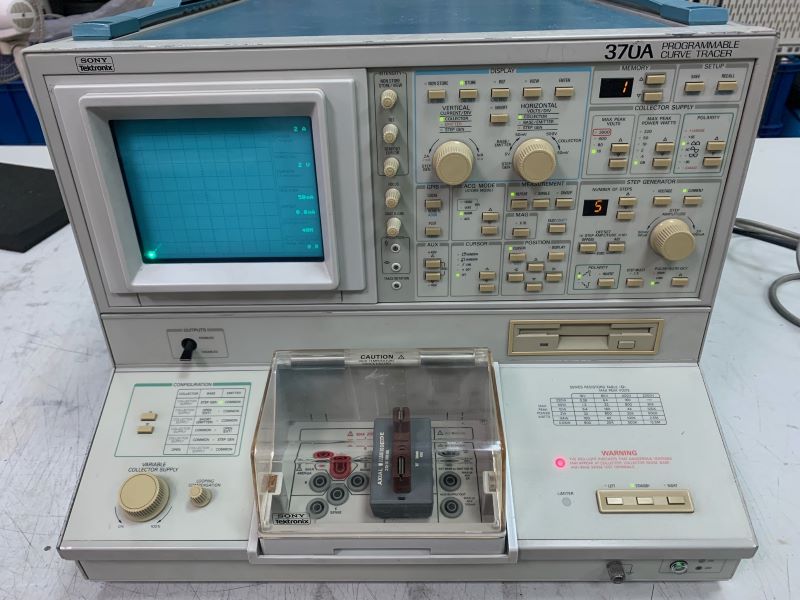

370A Programmable Curve Tracer

The 370A, the world standard for high resolution curve tracers is used in a wide variety of applications. The 370A performs DC parametric characterization of transistors, thyristors, diodes, SCRs, MOSFETs, optoelectronic components, solar cells, solid state displays and other semiconductor devices.

In the R&D lab, it is used for characterization of new designs, extraction of SPICE parameters, failure analysis and data sheet generation.

In manufacturing test, the 370A is used to verify device quality and process monitoring.

The 370A is used for incoming inspection to verify device performance, perform failure analysis and to match components.

特性

• High Precision Measurements of Semiconductor Devices
• Up to 2000 Volts or 10 Amp Sourcing
• Up to 220 Watts
• 1 Nanoamp Measurement Resolution
• Down to 2 Millivolt Measurement Resolution
• Waveform Comparison
• Envelope Display
• Waveform Averaging
• Dot Cursor
• Kelvin Sense Measurements
• Fully Programmable
• 3.5­Inch MS DOS­Compatible Disk Storage to Save and Recall Setups
