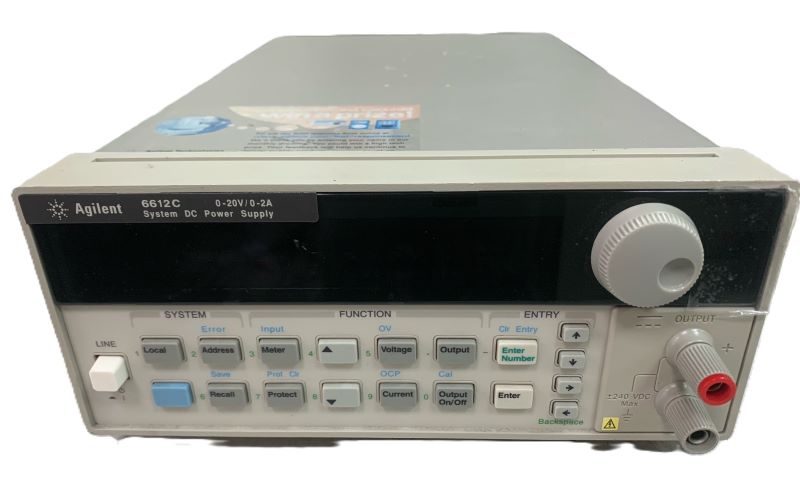

Agilent 安捷倫 6612C SYSTEM DC Power Supply 系統直流電源供應器 0-20V/0-2A

Output Ratings

• Voltage: 0 to 20 V
• Current: 0 to 2 A

Programming Accuracy at 25°C ±5°C

• Voltage: 10 m V
• +Current 0.05% + 1 m A

Ripple & Noise from 20 Hz to 20 MHz

• Voltage rms: 0.5 mV
• Voltage Peak-to-Peak: 3 mV
• Normal mode rms: 1 mA

Load &

• Load Voltage: 2 mV
• Load Current: 0.5 mA
• 0.5 mV
• 0.5 mA
