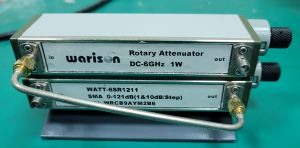

Warison WATT-6SR1211 Rotary Attenuator 可調式衰減器 DC to 6GHz 1W 0-121dB(1&10dB/Step)

Warison
WATT-6SR1211
Rotary Attenuator
可調式衰減器
DC to 6GHz 1W 0-121dB(1&10dB/Step)

Features:

 Smallest models made

 Low VSWR

Electrical Specification

Frequency : DC-6GHz

Attenuation Range : 0-121dB 1&10dB/Step

Attenuation Accuracy : 1dB/Step:±(Attenuation Value x 5%+0.4)dB 10dB/Step:±5%

Insertion Loss : 1.4dB +0.2dB/GHz

V.S.W.R : 1.7:1 max Input

Power : 1W (AVG) 100W(Peak)

Connector : SMA

Impedance : 50 ohm

Dimension : 140mm x 75mm

Mechanical Specification

Switching Cycle : 100,000 Times
