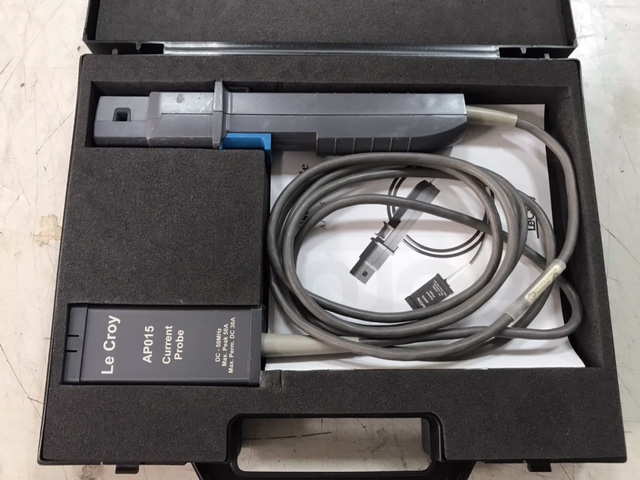

LeCroy 力科 AP015 Current Probe 電流探棒 DC to 50MHz, 30A
LeCroy
力科
AP015
Current Probe
電流探棒
DC to 50MHz, 30A
力科
AP015
Current Probe
電流探棒
DC to 50MHz, 30A
Electrical Characteristics
Max. Continuous Input Current 30 A
Bandwidth 50 MHz
Max. Peak Current at Pulse Width 50 A < 10 s
Rise time (typical) < 7 ns
Minimum Sensitivity 10 mA/div
Low Frequency Accuracy 1%
Coupling AC, DC, GND
General Characteristics
Cable Length 2 m
Weight 300 g
Max. Conductor Size (diameter) 5 mm
Interface ProBus, 1 MΩ only†
Usage Environment Indoors
Operating Temperature 0 °C to 40 °C
Max. Relative Humidity 80% (Max. 31 °C)
Max. Altitude 2000 m
Maximum Insulated Wire Voltage 300 V CAT I, 150 V CAT II
