頻譜分析儀

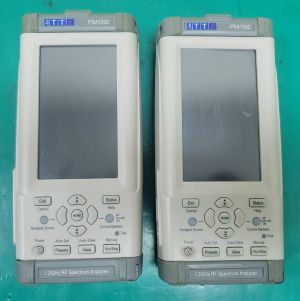

AIM TTI PSA1302 1.3GHz Spectrum Analyzer 手持式頻譜分析儀
AIM TTI
PSA1302
1.3GHz Spectrum Analyzer
手持式頻譜分析儀
A big feature set in a small instrument The PSA Series II incorporates the features most needed in a portable spectrum analyzer. 1MHz to 1300MHz ,frequency range Resolution bandwidths of 1MHz, 280kHz or 15kHz-96dBm typical noise floor at -20dBm reference level Measurement in dBm or dBµV, mV or µW Zero span mode with AM and FM audio demodulation Trace modes of normal, peak hold and trace average Live, View and Reference traces in contrasting colours Twin markers with readout of absolute & difference values Smart marker movement with selectable peak tracking Frequency presets and independent state storage Auto-find automatically sets sweep parameters for the highest signal found Unlimited storage for waveforms, set-ups and screens User assignable file names, file stamping from real-time clock USB interfaces for Flash drives and PC connection Comprehensive status and context sensitive help screens More than 8 hours continuous operation from a charge Smaller and lighter than other spectrum analyzers (weight only 0.56 kg)
